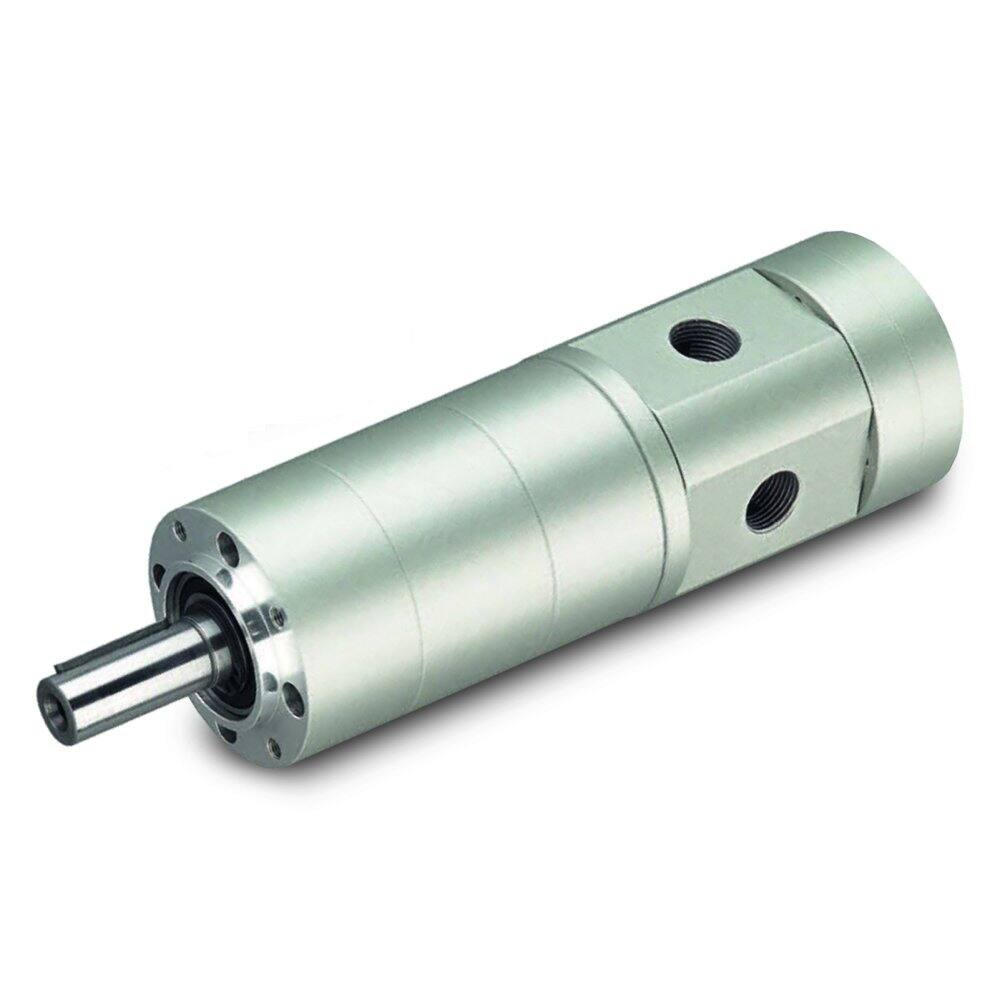

Rotary vane air motors - Parker P1V-M series


Parker P1V-M series air motors feature planetary gearboxes and are made of gray cast iron. Their robustness makes them suitable for all common air motor applications. The range comprises three different sizes with power ratings of 200, 400, 600, 900 and 1,200 watts. The motor and gearbox are built to be extremely durable, making the motors suitable for applications requiring considerable robustness. The gearbox is of the planetary type, permanently lubricated with grease. The flange support is an integral part of the housing, and, together with the foot support, offers numerous possibilities for simple, robust mounting. A new design principle makes servicing quicker and easier than with any comparable motor. Servicing requires removal of the screws holding the rear part of the motor and replacement of the worn fins located at the rear. Unlike conventional atmospheric engines, there's no need to open the P1V-M completely for servicing, making the process much easier.

- International standards: ATEX
- Rated power: 200, 400, 600, 900 and 1,200 watts
- Mounting: direct or with optional flange brackets or feet.
- Mounting position: free
- Operating environment: dry, non-lubricated compressed air or air lubricated with filtered oil vapors 40 μm
- Oil-free operation: ISO8573-1 purity class 3.4.1 (indoor)/ISO8573-1 purity class 1.2.1 (outdoor)
- Operation with oil: 1 to 2 drops per cubic metre, ISO8573-1 purity class 3 to 5
- Recommended oil: Klüber 4 UH1- 32 N food industry oil
- Operating pressure: 3 to 7 bar maximum (6 bar in explosive atmospheres)
- Operating temperature: standard temperature range -20 °C to +110 °C
- Corrosion resistance: High resistance to corrosion and chemicals.
