Rotary vane air motors - Parker P1V-M series

Rotary vane air motors - Parker P1V-M series

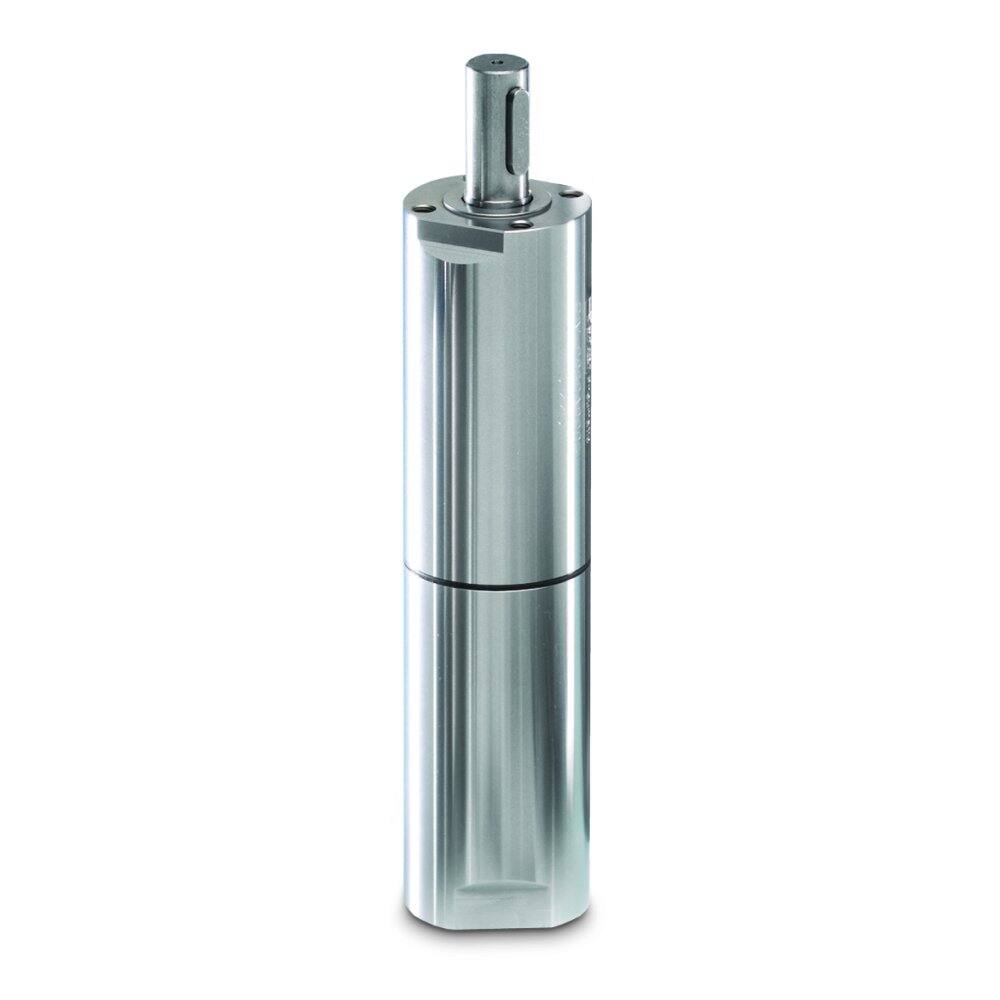

Parker P1V-S series stainless steel air motors are available in seven different sizes, with power ratings from 20 to 1,200 watts and speeds from 5 to 24,000 rpm. The air motor and planetary gearbox are housed in a polished stainless steel casing sealed by a fluorocarbon O-ring. The output shaft, made of polished stainless steel, is also hermetically sealed by a fluorocarbon rubber gasket. All external components are made of stainless steel, which means they can be used in food applications and other environments where there is a risk of corrosion. The choice of materials reflects the fact that aggressive cleaning products are used in food applications. Thanks to the shape of the cylinder, there are no pockets in which impurities or bacteria can accumulate. The P1V-S range is designed to operate at intermittent intervals without lubrication.

- International standards: ATEX
- Rated power: 20, 30, 80, 120, 200, 300, 600, 900 and 1,200 watts
- Mounting: direct or with optional flange brackets or feet.
- Mounting position: free
- Operating environment: dry, non-lubricated compressed air or air lubricated with filtered oil vapors 40 μm
- Oil-free operation: ISO8573-1 purity class 3.4.1 (indoor)/ISO8573-1 purity class 1.2.1 (outdoor)
- Operation with oil: 1 to 2 drops per cubic metre, ISO8573-1 purity class 3 to 5
- Recommended oil: Klüber 4 UH1- 32 N food industry oil
- Operating pressure: 3 to 7 bar maximum (6 bar in explosive atmospheres)
- Operating temperature: standard temperature range -20 °C to +110 °C
- Corrosion resistance: high resistance to corrosion and chemicals.
