STANDARD HYDRAULIC FILTER (F+R+L) - PARKER SERIES
p33

Parker Hannifin
STANDARD (F+R+L) - SERIES P33 - PNEUMATIC DIVISION EUROPE

- Configuration Filter + Reg + Lub
- Element: 5µ
- Connection port: 1/2″ | 3/4″
- Gauge connection port: 1/8″ + Gauge
- Exhaust options: Manual, Auto
- Connection ports: BSPP, NPT
- Maximum inlet pressure (psig): 250
- Maximum inlet pressure (bar): 17
- Operating temperature (°F): 14° to 150°.
- Operating temperature (°C): -10° à 65,5°
- Pressure control range (psig): 0 to 30 | 0 to 60 | 0 to 125 | 0 to 232 (metal)
- Pressure control range (bar): 0 to 2 | 0 to 4 | 0 to 8 | 0 to 16 (metal)
- Flow (SCFM): 90 | 110
- Flow rate (dm3/s): 43 | 52
- Body material: Aluminium
- Tank material: Polycarbonate, Aluminum
- Seal material: Nitrile

Documentation française

Documentation française

English documentation

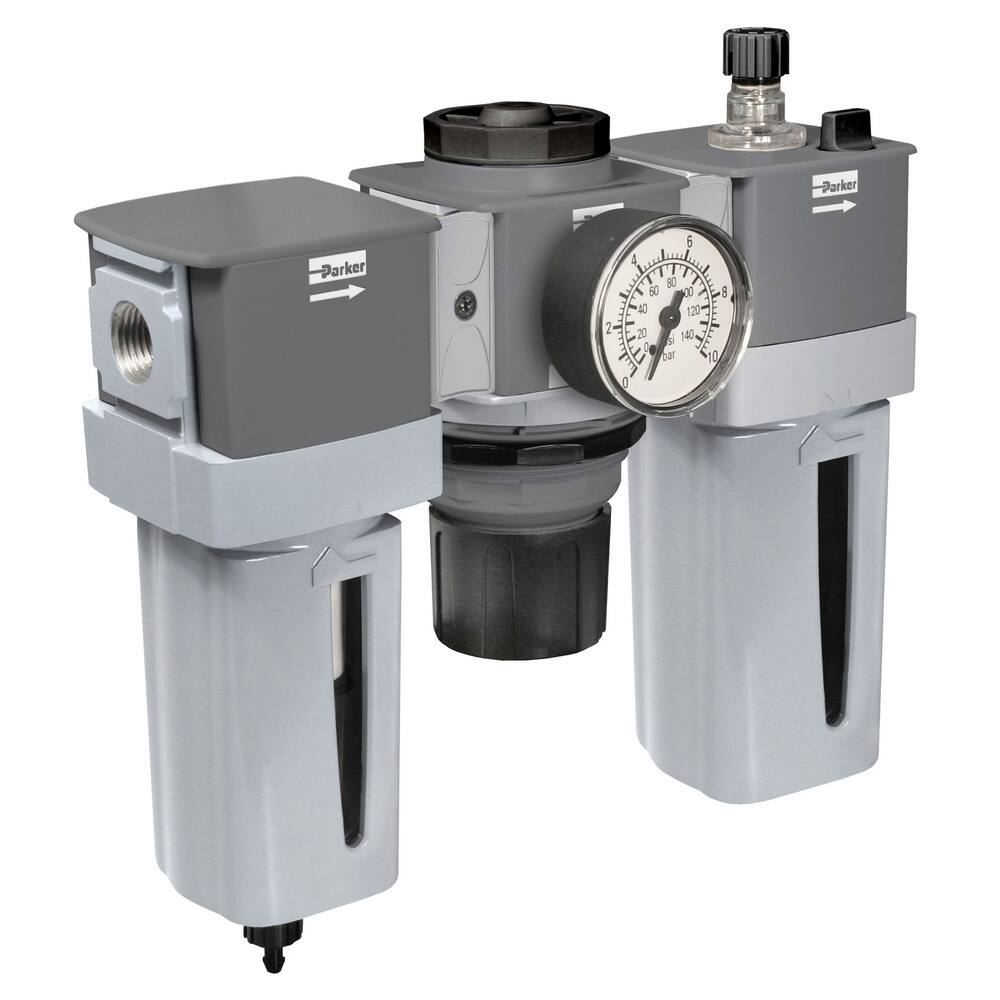

Parker's standard P33 is a 3-piece configuration comprising a regulator, hydraulic particle filter and mist-type lubricator in a single part number. The P33 combination ensures precise pressure regulation, high moisture removal efficiency, and proportional oil diffusion over a wide range of flow rates. This P33 standard can be assembled ready for use.

P33CB is a combination 237 mm, 1/2″,3/4″ BSPP/NPT, 5μ orifice, poly/metal bowl with manual/auto drain, 17 bar max pressure with P2 ranges from 0 to 2, 4, 8 & 17 bar, aerosol oil lubricator. Temperature range -10°C to 65.5°C.
